1. Light Source:119pcs 5730 Epistar
SMD
2. Luminous Flux:4300Lm
3. Rated Wattage:40W
4. PF>0.9
5. Base Options: E40/E39/E27/E26
6. Input Voltage: 85~265VAC,50/60Hz (277VAC available)
7. Color Temperature:3000~3500K/4000~4500K/6000~6500K
8. CRI > 75
9. Beam Angle:360°
10. Striped transparent cover+heat sink built-in
11. Lifetime: 50,000+ hours
12. Size: E40: Φ90*290mm
E27: Φ90*268mm
13. IP Rating:IP34 (Dust and humidity proof)
14. Body Temperature:<55℃@Ta=25 ℃
15. Isolated power supply
16. CE,ROHS approved
17.
Replacement:150~175W Matel Halide

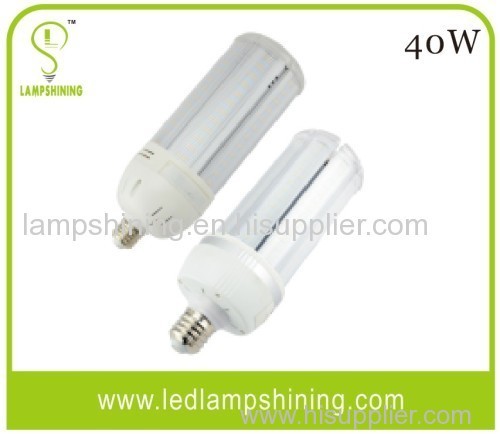

360degree led corn street light 40W Series features
1. Using high brightness of original packed Epistar 5730
SMD chip which acieves 100lm/w and high CRI >80
2. As the world's first new products,this 40W LED Post Top Retrofit Lamp could replace the conventional compact CFL light directly .
3. Unique constructiondesign with fullbeam angle (360°)
4. Fin aluminum heat dissipation system(patent design).
5. No spot, no black area, long life span and less brightness decay
6. Various lamp holder are available , a wide range of applications.(E39/E40, E26/E27)
7. Wide voltage AC100-277V,High efficiency constant current drives, Efficiency of power supply is more than 90%.
8. By usingFans protection circuit ,when fans do not work, the power of whole lampwill be reduced down to50% to ensurethe safety of the
lamps.
9. No magnetic disturbance influence and CE & RoHS standard compliant
10. No UV and near-IR radiation in the
light beam.
11. 3 years warranty
What should be awared of ?
1. Read the user's manual in details, make sure the environment conditions fits the requests
2. Cut the
power off before installation
3. Do not plug it to 277VAC unless it's labeled.
4. Do not install this
40W LED Post Top Retrofit Lamp in ambient where has high temperature over like 55 celsius degree or over corrosive gas
5. Indoor & outdoor use
6. Don't throw away casually
