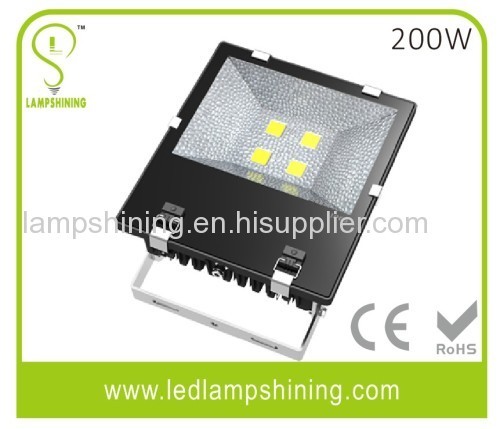

200w retrofit led flood light - outdoor IP65 - meanwell - bridgelux - 18000Lm - 95~295VAC | outdoor IP65 led floodlight 200w
1. Light Source:4pcs*50w bridgelux/Epistar led
2. Luminous16000~18000Lm(Bridgelux 45mil)
3. Rated Wattage:200W
4. PF > 0.9
5. Ra > 76
6. Base Options: US,Europe,UK standard plug
7. Input Voltage: 85~295VAC,50/60Hz
8. Color Temperature: 3000~3500K/4000~4500K/6000~6500K
9. Beam Angle: 120 ° only
10. Lifetime: 50,000+ hours
11. Size: 400mm * 340mm * 192mm
12. IP Rating:IP65
13. Body Temperature:<55℃@Ta=25 ℃
14. Isolated power supply
15. CE,ROHS approved
16. Retrofit fin aluminum+stainless steel + tempered glass diffuser
17. Replacement:550~600W Matel Halide/High pressure sodium
Retrofit led flood light features
1. Tempered clear glass diffuser
2. Prewired to 0.5m flex and plug, plug is available with standard US,Europe,UK,Asia etc.
3. Made with retrofit aluminum,steel screws,ASA housing,strong and durable.
4. This
200w retrofit led flood light owns better heat dissipation aluminum system
5. Easy installation, adjustable stand lets you point the light at different angles.
6. Use toughened glass and the light transmittance is about 93%.
7. No UV and near-IR radiation in the light beam.
8. IP65,ideal for indoor and even for outdoor use
9. Chip are High brightness Bridgelux and Epistar
10. 3 years warranty
Installation
Step 1, Power must be cut off before installation,it's not allow all this with power on
Step 2, Put two screws on where required the same size as position A what is indicated in the diagram
Step 3, Makeconnection of blue with L line,brown with N line and yellow green wireswith Earth line,turn it on when it's connected properly
What should be awared of ?
1. Read the user's manual in details, make sure the environment conditionsfits the requests
2. Cut the power off before installation
3. Do not touch the exposed wires when it's running on.Make sure wires are protected by insulating tape
4. Do not install this waterproof 200W retrofit led flood light in ambient where has high temperature over like 55 celsius degree or over corrosive gas
5. Indoor & outdoor use
6. Don't throw away casually
Where to use ?
1. This retrofit waterproof
200W retrofit LED flood lightis the best choice for park, parking lot,garden,building,billboard,park,outdoor basketball court ,airportlighting and sports hall etc
Please contact sales office of
Lamp Shining for IES files for lighting project simulation
