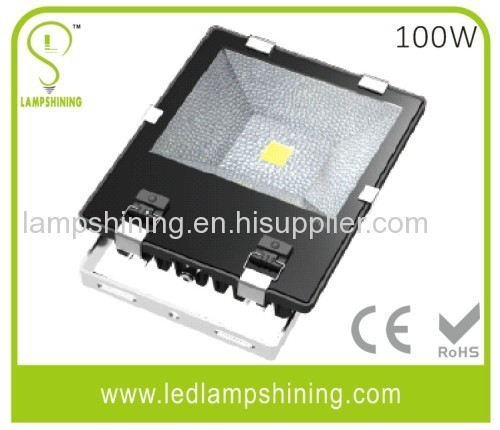

100w retrofit led projector light - outdoor IP65 - meanwell - bridgelux - 9000Lm - 95~295VAC | outdoor IP65 led floodlight 100w
1. Light Source:1pc bridgelux/Epistar led
2. Luminous Flux:7500~8000Lm (Epistar)
8500~9000Lm(Bridgelux 45mil)
3. Rated Wattage:100W
4. PF > 0.9
5. CRI > 76
6. Base Options: US,Europe,UK standard plug
7. Input Voltage: 85~295VAC,50/60Hz
8. Color Temperature:3000~3500K/4000~4500K/6000~6500K
9. Beam Angle:120 °
10. Lifetime: 50,000+ hours
11. Size: 309mm * 250mm * 192mm
12. IP Rating:IP65
13. Body Temperature:<55℃@Ta=25 ℃
14. Isolated power supply
15. CE,ROHS approved
16. Retrofit fin aluminum+stainless steel + tempered glass diffuser
17. Replacement:300~350W Matel Halide/High pressure sodium
Retrofit LED projector Light Features
1. Tempered clear glass diffuser
2. Prewired to 0.5m flex and plug, plug is available with standard US,Europe,UK,Asia etc.
3. Made with retrofit aluminum,steel screws,ASA housing,strong and durable.
4. This 100w retrofit led projector light owns better heat dissipation aluminum system
5. Easy installation, adjustable stand lets you point the light at different angles.
6. Use toughened glass and the light transmittance is about 93%.
7. No UV and near-IR radiation in the light beam.
8. IP65,ideal for indoor and even for outdoor use
9. Chip are High brightness Bridgelux and Epistar
10. 3 years warranty
What should be awared of ?
1. Read the user's manual in details, make sure the environment conditionsfits the requests
2. Cut the power off before installation
3. Do not touch the exposed wires when it's running on.Make sure wires are protected by insulating tape
4. Do not install this waterproof 100W retrofit projector light in ambient where has high temperature over like 55 celsius degree or over corrosive gas
5. Indoor & outdoor use
6. Don't throw away casually
Where to use ?
1. This retrofit waterproof 100W retrofit LED projector lightis the best choice for park, parking lot,garden,building,billboard,park,outdoor basketball court ,airportlighting and sports hall etc
Please contact sales office of Lamp Shining for IES files for lighting project simulation
