T8 60CM( 2ft ) 10W LED Tube light SMD | office lighting led tube light T8 replacement | Garage lighting led tube T8 10w
1. Light Source:60pcs Epistar 2835
SMD LED
2. Luminous Flux:Milky:900lm Transparent/Striped:1000lm
3. Ra > 75
4. PF>0.92
5. Beam Angle:120 °
6. Base Options: G13 rotated and non-rotated option
7. Rated Wattage:10W
8. Input Voltage: 85~265VAC,50/60Hz
9. Color Temperature:2700~3000K/4000K~4500K/6000~6500K
10. Oval aluminum shape/no dark spot at all
11. Lifetime: 50,000+ hours
12. IP Rating:IP20(dust proof)
13. Size: Ф26mm * L 600mm( 2feet )
14. Body Temperature:<50℃@Ta=25 ℃
15. Working Temp: -35~50℃
16. Replacement: 22W CFL
Tube

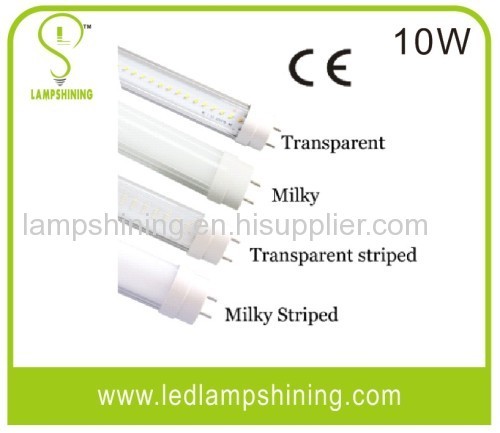

17. PC cover:Transparent / Striped /Milky
18. Materials: 6063Aluminun+MPCB+PC
19. Isolated power supply
20. CE,ROHS approved
21. Application:Indoor
Features of T8 LED Tube Light
1.Steady and robust. The unique design of inner snap-fit structure ensures the product is pressure resistant
2.Specially designed structrure that can be distribute light evenly
3.better safety performance. The Isolated
LED driver ensures the safety of the product
4.high lumens.The lumens output in total is as high as 85~100LM/W
5.Contains no Hg or Pb, more environmentally.
6.No stroboscopic effect, good for eyes
7.No ultra violet or infrared rays.
8.Extended service life, as long as 30,000~50,000hours.
9.Wide rage of operating voltage 90~240VAC
What should be awared of ?
1. Read the user's manual in details, make sure the environment conditions fits the request
2. Cut the
power off before installation
3. Do not touch the tube pins when it's running on.
4. Do not install
T8 60cm ( 2ft ) 10W LED tube light in ambient where has high temperature over like 55 celsius degree or over corrosive gas
5. Indoor use only
6. Don't throw away casually
Where to use ?
1. This
T8 60cm ( 2ft ) 10W LED tube light is the best choice for office lighting,hotel,exhibition,factories , hospitals and libraries and indoor house lighting
Please contact sales office of
Lamp Shining for IES files for lighting project simulation
