1. Light Source:130pcs Epistar 2835
SMD LED
2. Luminous Flux:Milky:1800lm / Transparent/Striped:2000lm
3. Ra > 75
4. PF>0.92
5. Beam Angle:120 °
6. Base Options:G13 rotated and non-rotated option
7. Rated Wattage:20W
8. Input Voltage: 85~265VAC,50/60Hz
9. Color Temperature: 2700~3000K/4000K~4500K/6000~6500K
10. Oval aluminum shape/no dark spot at all
11. Lifetime: 50,000+ hours
12. IP Rating:IP20(dust proof)
13. Size: Ф26mm * L 1200mm( 4feet )
14. Body Temperature:<50℃@Ta=25 ℃
15. Working Temp: -35~50℃
16.
Replacement: 42W CFL Tube

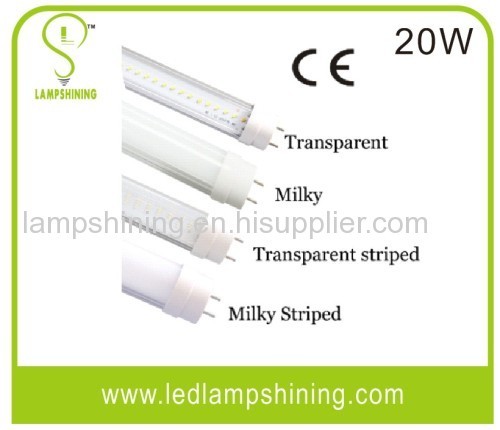

17. PC cover:Transparent / Striped /Milky
18. Materials: 6063Aluminun+MPCB+PC
19. Isolated power supply
20. CE,ROHS approved
21. Application:Indoor
What should be awared of ?
1. Read the user's manual in details, make sure the environment conditions fits the request
2. Cut the
power off before installation
3. Do not touch the
tube pins when it's running on.
4. Do not install
T8 1.2m ( 4ft ) 20W LED tube light in ambient where has high temperature over like 55 celsius degree or over corrosive gas
5. Indoor use only
6. Don't throw away casually
Where to use ?
1. This T8 1.2m ( 4ft ) 20W LED tube light is the best choice for office lighting,hotel,exhibition,factories , hospitals and libraries and indoor house lighting.
Please contact sales office of
Lamp Shining for IES files for lighting project simulation
